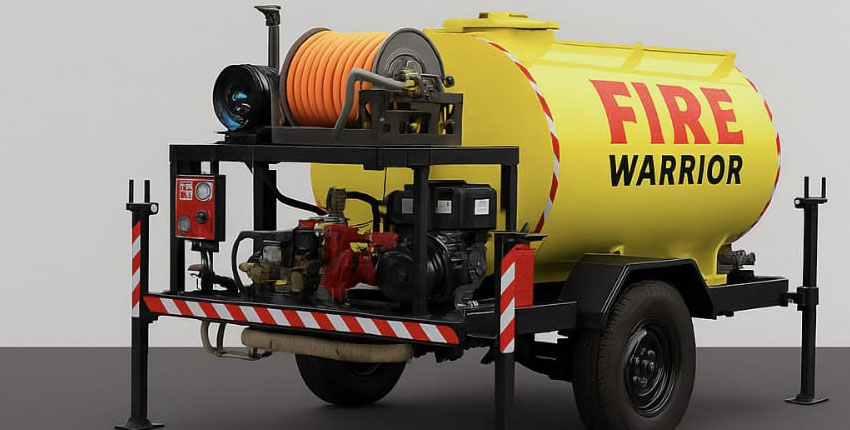

FIRE TENDER - EFFICIENT RESPONDER TRAILER UNIT

A fire tender (or fire engine/truck) is a specialized vehicle for firefighting, carrying water, foam, equipment (ladders, tools), and personnel to fire scenes, ranging from basic pumpers to advanced airport crash tenders.

TECHNICAL SPECIFICATION FOR EFFICIENT RESPONDER TRAILER UNIT

1. GENERAL REQUIREMENT:

The requirement is for efficient responder unit which can be used primarily for Firefighting purpose. The pump shall satisfy the following requirements.

1. A) Single stage centrifugal Pump
   Fuel: Petrol
   Firefighting Capacity: Not less than 150 LPM @ 18 KG/CM2 pressure
   Engine: 4 Stroke, Twin Cylinder

2. FIRE FIGHTING ENGINE:

1. The engine shall be of Briggs & Stratton “Vanguard” two-cylinder four
2. The engine shall be of petrol
3. Air cooled engine shall be of twin cylinder overhead valve and shall be capable to deliver 18 /23 HP @ 3600 rpm.
4. Engine shall be electrical start and standby recoil type hand start shall be
5. The fuel tank capacity shall not be less than 5 ltrs.

3. PUMP:

1. For firefighting, pump capacity shall not be less than 150 LPM at 18 kg/cm2, when tested from 3 meters suction height at NTP conditions (AS per IS: 944).
2. Pump shall be of single stage centrifugal type
3. Pump shall have 1 suction inlets of size not less than 75 mm with British Standard Round threads as per IS 902 with internal strainer & blank cap. The strainer shall be readily removable type.
4. Pump shall have one delivery outlet of 38 mm and another of 19

1. The Pump shall be designed to have easy access to the Impeller with the outer face carrying suction, delivery and priming device The Pump fitted with a self-adjusting mechanical seal. A drain valve shall be provided at the bottom of the Pump casing/volute.
2. Impeller shall be dynamically balanced and the Pump shall show no leakage when subjected to a hydraulic pressure of 21 kg/cm2 for five minutes.

1. Pump casing shall be made of Aluminum

1. The impeller shall be made of Gunmetal & duly dynamically

1. The impeller neck rings shall be of renewable

1. All the parts, nut-bolts of pump which comes in water contact shall be made of anti-corrosive material.

Priming system

7. A Highly reliable hand operated piston primer shall be provided capable of lifting from 7.5 meters depth at NTP conditions.

4. TRAILER

The pump shall be mounted on a Trailer for transportation purpose. The Trailer should satisfy the following.

1. The Trailer chassis frame shall be made of suitable mild steel It shall have 2 wheels & single axles.
2. Heavy duty semi-elliptical Leaf Spring type suspension shall be
3. Heavy duty tyres of suitable size of reputed make would be
4. The whole unit shall be compact and mounted as to bring Centre of gravity as low as
5. Ground clearance at the lowest point of axle shall not be less than 230
6. Efficient hydraulic over-run braking shall be provided on both
7. Two handles (Man handling bars) of mild steel shall be provided at the front of the Trailer frame. The handles shall be so designed that it can be folded and secured along the frame when not in use.
8. Two jack legs in the rear and two in the front capable of being lowered into position and adequately secured to provide a suitable base for the unit, when pumping or standing unattached, shall be provided. The legs shall have suitable sized square plates and welded to the base of the pipe legs to prevent penetration into the earth when standing unattached. The legs shall be capable of being positively locked in the 'housed'
9. Towing eye of minimum 75 mm internal The towing bar should be fitted with heavy duty springs both at the front and rear to absorb jerks. The shank shall be adequately machined with adequate radius at the shoulders.

1. Mudguards for all Trailer Wheels shall be provided to prevent mud and water entering the unit, while running. Provision of keeping suction hoses, adequately secured, shall also be made in the Trailer with
2. There shall be provision in the trailer to place the tool box in safe and secured manner

5. HIGH PRESSURE HOSE REEL WITH JET GUN: -

1. Manual rewind high-pressure hose reel shall be provided at appropriate location of the Trailer/Skids.

1. The hose will be prevented from

1. The working pressure of hose shall not be less than 100 bar.

1. The high-pressure hose reel will hold 60/30 meter of hose in one length, terminating in a high-pressure for AWG/ Rosenbauer/ Firefly make nozzle.
2. Plumbing between the pump and hose reel will have clean and unobstructed waterway of not less than 20 mm throughout without any restriction.

6. WATER TANK:

1. Water tank shall be made up of mild
2. The tank capacity shall not be less than 2000

7. CONTROL PANEL:

Pump control panel shall have the following facilities.

1. Throttle control
2. Ignition Interrupter
3. Pump Compound Gauge (-1 to 9 kg/cm2)
4. Pump Delivery Pressure (0 to 21 kg/cm2)
5. Flood

8. TESTING:

Pump shall be endurance tested for 4 continuous hours at rated duty point of 150 LPM at 18 kg/cm2 at NTP conditions. Suction height shall be 3 meters from the center of pump impeller, as per IS 944. During the test, engine oil or pump oil shall not be changed. The cost of consumables for the test shall be borne by the supplier.

9. EQUIPMENT:

The following equipment shall be provided with the unit.

4. 75 mm Dia suction Hose of length 5 meters, each fitted with Gun Metal suction Hose coupling. - 02 Nos
5. Suction - 02 Nos.

1. Metal Strainer 75 mm (G.M.) - 01
2. Basket Strainer for 75 mm dia with canvas cover – 01 nos
3. A tool kit comprising of all essential tools required for maintenance of the Pump

Instruction Book including both operating and normal maintenance procedures shall be provided for the guidance of the user. The Book shall include an item wise and illustrated spare parts details giving reference No. of all parts. Description shall be there in English language.

12. MARKING:

The pump Unit shall be clearly and permanently marked (embedded) with the following information.

1. The output capacity of Pump in
2. Manufactures Name and Trade
3. Weight of the Pump
4. Year of
5. No. of the Pump.
6. Engine

13. PAINTING & OVERALL WORKMANSHIP

Overall workmanship shall be of good quality. Trailer & base frame shall be painted in black color.
